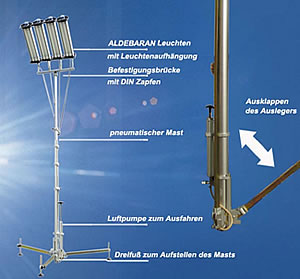

Pneumatic lamp mast with hand pump
(Fig. incl. tripod and ALDEBARAN lighting)

This pneumatic lighting mast, made by Setolite, can be utilized for various applications. It can be commissioned in a freestanding state, when mounted to a vehicle or while the mast is standing on a trailer. With a minimal height of 3,5m and a maximal height of 14m, this unit can perfectly illuminate huge areas. With the aid of the tripod (see the figure; not included in delivery) and an adequate guying the mast can easily stand wind speeds of up to 100km/h. In addition to this, the tripod can completely be fixed to the ground by pegs and thereby it can guarantee the required stability even in rough and complicated areas.
The lighting mast can be handled or rather extended either in a manual way, by hand pump or via pressurized air. The single units of the mast are lockable, for to avoid an unintentional twisting and to ensure a positioning during a longer period. Furthermore, the light can be adjusted in the requested direction by the light suspension without newly adjusting the whole mast. The mast is made of 2mm anodized aluminum tubes which provide a high corrosion protection. When delivered, the mast will be completely with hand pump and outlet valve. The Aldebaran lightings on the picture and the tripod are not included in delivery and need to be ordered separately.

Institutions such as NATO/ military and disaster control, but also emergency rescue services (DRK and THW) have confidence in our company. Let yourself get into a technique that makes sense.

For further information please see the technical data. Click here…

For further enquiries feel free to call. We are looking forward to answering your questions.
