Product Highlights
- Glare-free SETO XPECT®2-LED lens optics (significantly reduces scattering losses and glare)
- Integrated DIN pin holder, cable winder and handle
- SETO LifeView color mixer system for optimal penetration in all weather conditions
- 12/24 V Anschluss
ALDEBARAN® GLADIUS 2K LED 12/24 V DC / 120 W, standard plug

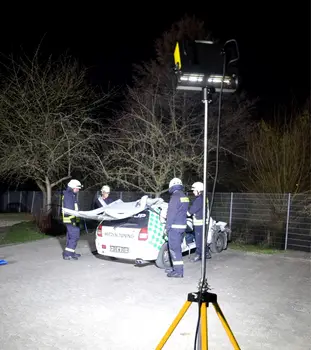

Efficient tools in rescue technology are more important than ever.
The low weight of ALDEBARAN® GLADIUS 2K LED, its compact size and practicality in use were of the same name Short sword to the Romans estimated virtues.

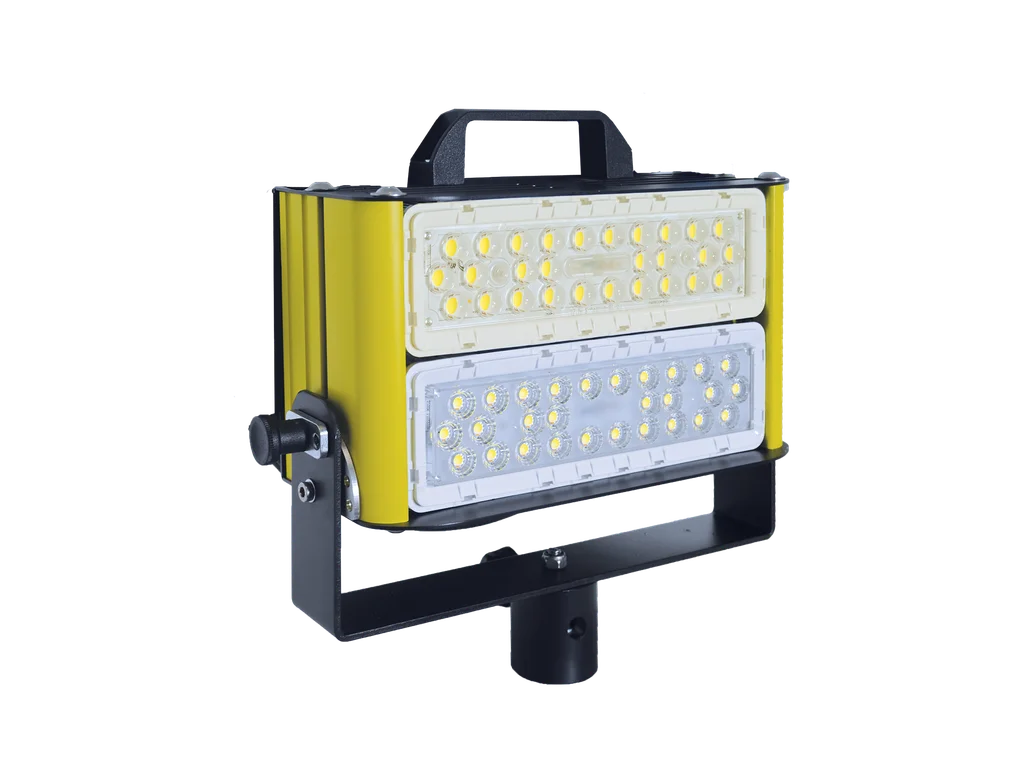

The SETO XPECT®2 LED lens system used in the ALDEBARAN® GLADIUS 2K LED enables a long range for search operations and comprehensive illumination of the close-range area at the same time with virtually no light spill.
A natural color reproduction and reflection even in adverse weather conditions will be achieved through the use of the integrated SETO LifeView Systems, are combined additively in which different colors of light.

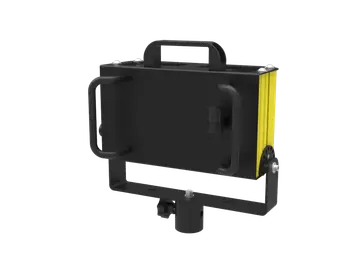

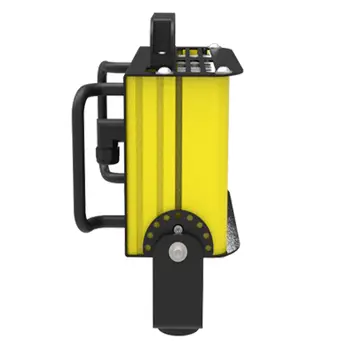

The ALDEBARAN® GLADIUS 2K LED has an integrated cable winder for the 10-metre connection cable, as well as an integrated carrying handle and a DIN bolt receiver on the underside. This makes the ALDEBARAN® GLADIUS 2K LED the universal lighting tool and an efficient replacement for conventional halogen spotlights.
1410001312Technical Specifications
| Attribute | Value | Unit |
|---|---|---|
| Brand | ALDEBARAN® | |
| Series | GLADIUS | |
| Model | 2K LED 12/24V | |
| Temperature (min) | -25 | °C |
| Temperature (max) | +40 | °C |
| Dimensions | 328 x 339 x 181 | mm |
| Weight | 6 | kg |
| IP Class | IP54 | |
| Plug | Standard Plug 12 A | |
| Cable Length | 5 | m |
| Feature | bolt receiver, cable reel |
| Attribute | Value | Unit |
|---|---|---|
| Luminant | 2x SETO XPECT®2 LED module | |
| Luminous Flux | 19000 | lm |
| Luminous Flux (real) | 17250 | lm |
| Colour Temperature | 4000 / 5700 | K |
| Beam Angle | 60/25 | ° |
| CRI | >70 | |
| Durability | 50000 | h |
| Attribute | Value | Unit |
|---|---|---|
| Input Voltage | 10,5-35 | V |
| Type of Current | DC | |
| Power Consumption | 120 | W |
| Protection Class | III |
Lamps
Lamp 1: LED Module SPM16B, optic 60D3160, plug
| Type | 1410911244 |
| Quantity | 1 |
| Lamp replaceable | Tauschbar durch Fachpersonal (LED) / Replaceable (LED only) by a professional |
| Ballast replaceable | Austauschbar durch Fachpersonal / Replaceable by a professional |
Lamp 2: LED Module SPM16B, optic 25D3125, plug
| Type | 1410911249 |
| Quantity | 1 |
| Lamp replaceable | Tauschbar durch Fachpersonal (LED) / Replaceable (LED only) by a professional |
| Ballast replaceable | Austauschbar durch Fachpersonal / Replaceable by a professional |
