Product Highlights
- Maximum light output
- Passive, wear-free cooling technology
- Set up in seconds
- SETO XPECT®2 LED module lens optics
- Diffusers for homogeneous illumination in the close range
- connection cable replacable
- Switch box
- Half-sided switchable

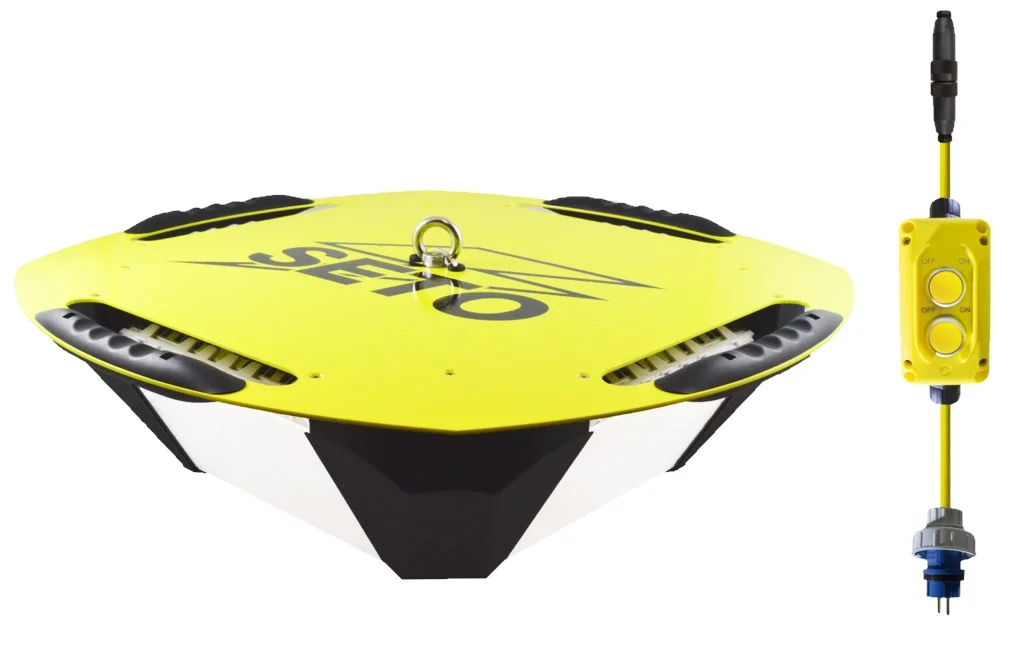

ALDEBARAN® XLD-2C SWITCH, 100-240 V, IP67, 560 W
Serving extreme conditions and requirements were the basic ideas behind the development of the ALDEBARAN® XLD-2C SERIES.
Whether you prefer extreme light output, extremely fast assembly and disassembly or extreme economy in purchase and operation, the ALDEBARAN® XLD-2C SERIES fulfils all these requirements with flying colours. The fanless and wear-free high-performance LED modules are equipped with the SETO XPECT®2 lens system and thus ensure maximum efficiency, providing you with optimally distributed, homogeneous light in every situation.
Optional functions such as segment-by-segment 180° switching (SWITCH version) and continuous dimming (DIM version) are also available for demanding lighting situations. Diffusers included in the scope of delivery make it possible to guarantee safety-relevant glare-free light even at very short working distances.
1410001503Technical Specifications
| Attribute | Value | Unit |
|---|---|---|
| Brand | ALDEBARAN® | |
| Series | XLD | |
| Model | -2C SWITCH SET | |
| Impact Resistance | IK10 | |
| Temperature (min) | -40 | °C |
| Temperature (max) | +59 | °C |
| Dimensions | 650 x 650 x 290 (Lamp) | mm |
| Weight | 17,6 | kg |
| IP Class | IP65 | |
| Dimmable | No | |
| Light Functions | 180° Segment Switch | |
| Cable | Ölflex® 540P / H07BQ-F 3G1,5 | |
| Plug | Schuko IP68 | |
| Total Cable Length | 8 | m |
| Cable Length Plug-Control Unit | 3 | m |
| Cable Length Control Unit-Lamp | 5 | m |
| Exchangeable Cable | Yes |
| Attribute | Value | Unit |
|---|---|---|
| Colour Temperature | 5000 | K |
| Luminant | 8x SETO XPECT®2 LED module | |
| Luminous Flux | 101000 | lm |
| Beam Angle | 360/60 | ° |
| Luminous Flux (real) | 90700 | lm |
| CRI | >70 | |
| Durability | 50000 | h |
| Attribute | Value | Unit |
|---|---|---|
| Input Voltage | 100-240 | V |
| Mains Frequency | 50/60 | Hz |
| Type of Current | AC | |
| Power Consumption | 560 | W |
| Protection Class | I |
Accessories
Notstrommodule
| Article No. | Image | Name |
|---|---|---|
| 1410001426 | 1410001426 |
Lamps
Lamp 1: LED high bay module SPM16B, optic 60D3160, plug
| Type | 1410911240 |
| Quantity | 8 |
| Lamp replaceable | Tauschbar durch Fachpersonal (LED) / Replaceable (LED only) by a professional |
| Ballast replaceable | Austauschbar durch Fachpersonal / Replaceable by a professional |
