Product Highlights
- Maintenance-free LED technology
- Up to 70% energy savings
- SETO XPECT® LED lens system to avoid stray light and light pollution

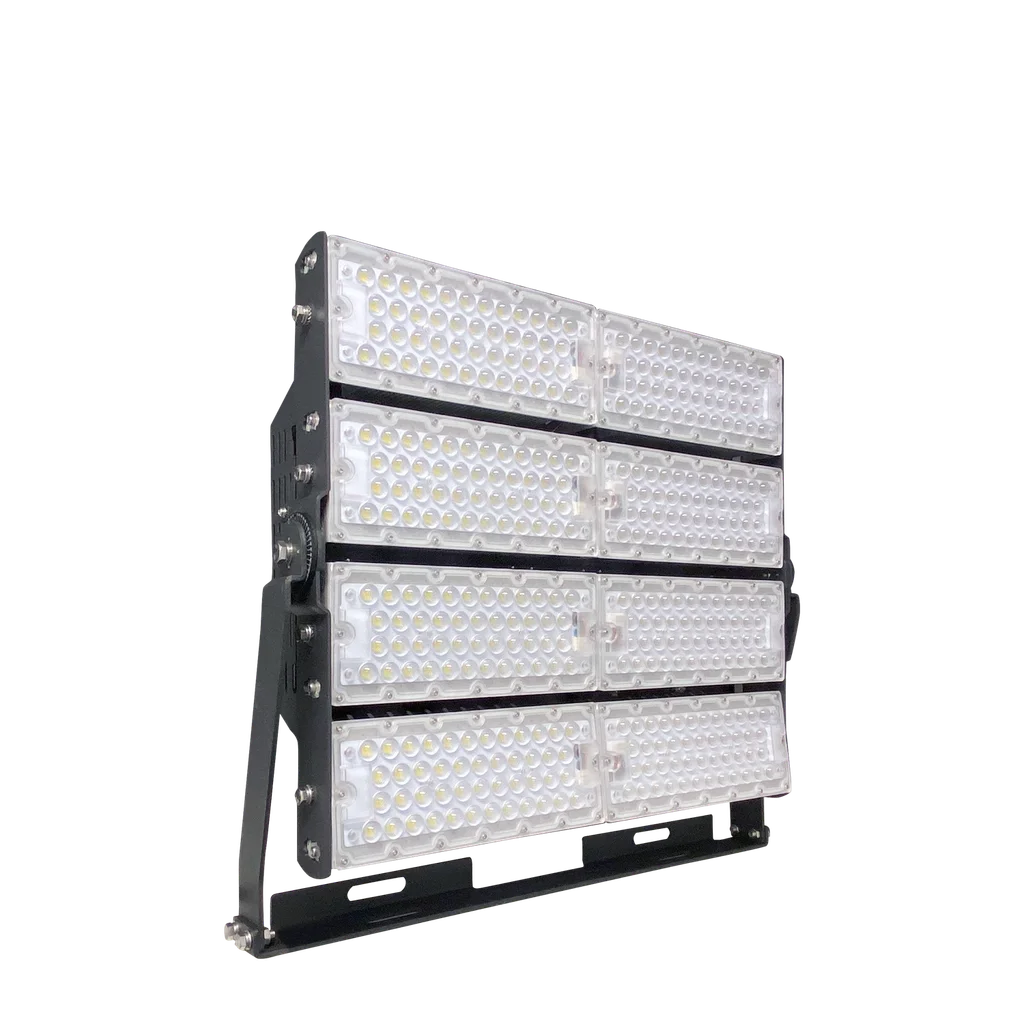

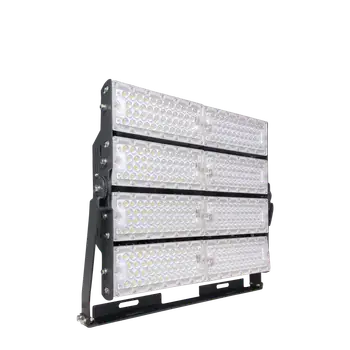

SETO CRANESTAR 24K; High Performance LED Floodlight for Large Area Lighting
Crane emitters of SETO CRANE STAR SERIES upgrading of construction cranes on the latest LED technology is now cost-effectively and in exchange possible.
The focus in designing this crane lights was on the essential: As much light where it is needed, with the lowest possible energy consumption in construction site quality suitable. The result is an Area Lights without compromise and with clever details.
The CRANE STAR floodlights takes on the familiar from ALDEBARAN® CRANE MASTER SERIES fall arrest safety, the spotlight can also easily raise at. An angular scale allows the targeted alignment of the LED emitter. And its high impact strength and water resistance he faces hostile environments with ease.
The efficiency-enhancing LED avoids lens technology unwanted stray light and thanks to intelligent design realized a very low weight and compact dimensions, which also benefits the construction logistics.
1424000043-ATechnical Specifications
| Attribute | Value | Unit |
|---|---|---|
| Brand | SETO | |
| Series | CRANESTAR | |
| Model | 24k | |
| Temperature (min) | -30 | °C |
| Temperature (max) | +40 | °C |
| Dimensions | 597 x 650 x 132 | mm |
| Weight | 22 | kg |
| Angle Adjustment | 360° turnable in 8° steps | |
| Backup Cable | yes | |
| IP Class | IP65 | |
| Impact Resistance | IK08 | |
| Plug | CEE 16 A / 400 V 5p IP67 |
| Attribute | Value | Unit |
|---|---|---|
| Luminant | 8x 120 W LED module | |
| Luminous Flux | 176200 | lm |
| Luminous Flux (real) | 163000 | lm |
| Colour Temperature | 5000 | K |
| CRI | >70 | |
| Durability | 50000 | h |
| Beam Angle | 60 | ° |
| Attribute | Value | Unit |
|---|---|---|
| Input Voltage | 400/230 | V |
| Mains Frequency | 50/60 | Hz |
| Type of Current | AC | |
| Power Consumption | 960 | W |
| Protection Class | I | |
| Wiring | 3P+N+PE |
Lamps
Lamp 1: LED Module 120W, optic 60°, 5000°K, plug
| Type | 1410911420 |
| Quantity | 8 |
| Lamp replaceable | Tauschbar durch Fachpersonal (LED) / Replaceable (LED only) by a professional |
| Ballast replaceable | Austauschbar durch Fachpersonal / Replaceable by a professional |
