Product Highlights
- Wear and maintenance-free LED technology
- Up to 70 % energy savings
- SETO XPECT® LED lens system to avoid stray light and light pollution
- SETO TRUE VIEW Light color mixture for optimal visibility in rain, fog and dust
- 360° swivelling with fine scale for alignment
- Almost indestructible SETO IRONCORE STRUCTURE

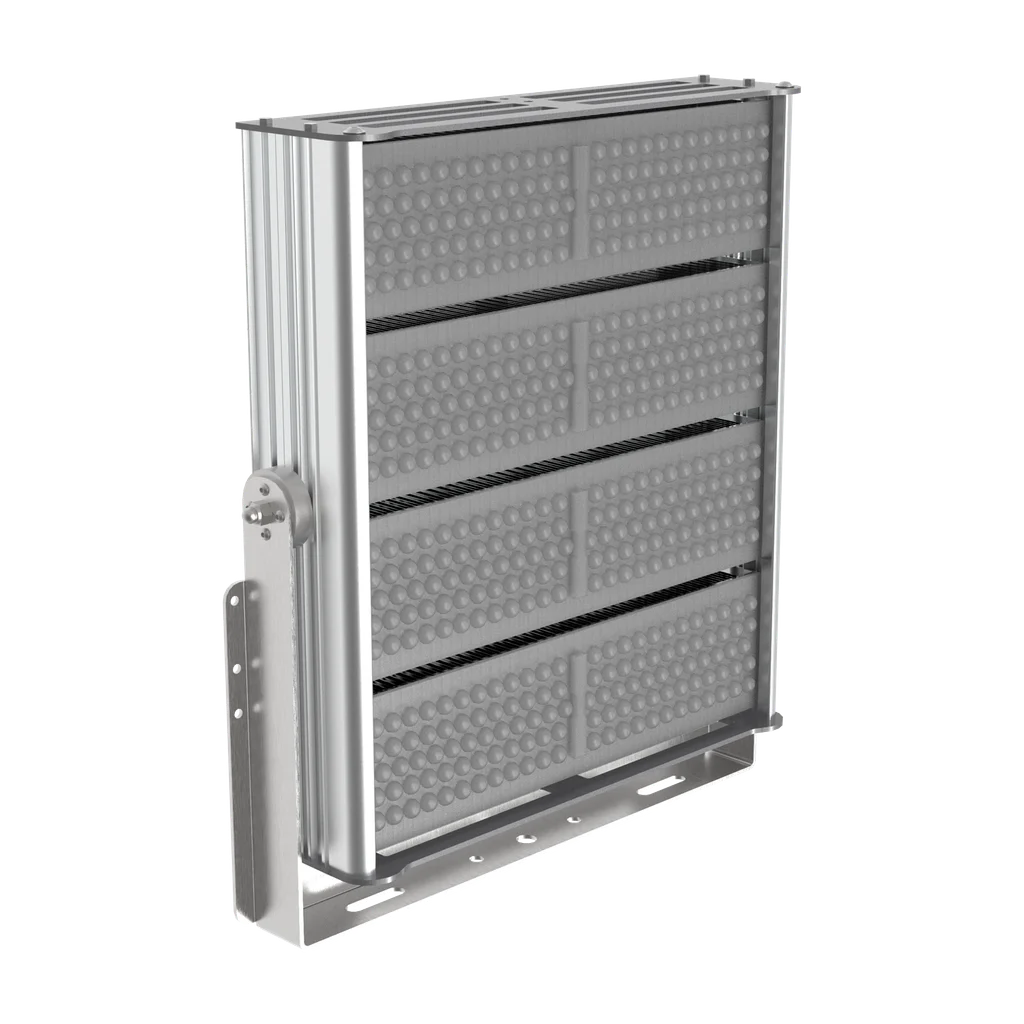

ALDEBARAN® CRANEMASTER AC2800 LED
Designed specifically for installation on tower cranes and for illumination of large construction sites, the ALDEBARAN® CRANEMASTER 2.0 SERIES literally outshines high-maintenance halogen and HQI solutions.
Depending on the ambient conditions, these LED floodlights for top-slewing cranes can achieve energy savings of up to 70 per cent. Thanks to the SETO XPECT®2 lens technology used, the light is emitted in a targeted manner in the required areas and at the same time the unwanted and energy-consuming spread of inefficient scattered light is contained.
The SETO TRUEVIEW technology of our LED crane lighting counteracts weather-related poor visibility conditions on the building site. Different light colours are combined in such way that an optimal penetration of atmospheric disturbances such as fog is achieved. The wear-free and maintenance-free LED technology does not require any active cooling components, which ensures maximum efficiency and reliability. Due to the indestructible SETO IRONCORE design, the safe use of the ALDEBARAN® CRANEMASTER on the construction site is permanently ensured.
1443001502-ATechnical Specifications
| Attribute | Value | Unit |
|---|---|---|
| Brand | ALDEBARAN® | |
| Series | CRANEMASTER | |
| Model | AC2800 LED | |
| Temperature (min) | -30 | °C |
| Temperature (max) | +40 | °C |
| Dimensions | 645 x 700 x 145 | mm |
| Weight | 27 | kg |
| Angle Adjustment | 360° turnable in 7,5° steps | |
| Backup Cable | yes | |
| IP Class | IP66 | |
| Impact Resistance | IK10 | |
| Plug | CEE 5-pole, IP67 |
| Attribute | Value | Unit |
|---|---|---|
| Luminant | 4x 300W LED module | |
| Luminous Flux | 221600 | lm |
| Luminous Flux (real) | 198800 | lm |
| Colour Temperature | 4000 / 5700 | K |
| CRI | >70 | |
| Durability | 100000 | h |
| Beam Angle | 60 | ° |
| Attribute | Value | Unit |
|---|---|---|
| Input Voltage | 400 | V |
| Mains Frequency | 50/60 | Hz |
| Type of Current | AC | |
| Power Consumption | 1200 | W |
| Protection Class | I |
Accessories
Other
| Article No. | Image | Name |
|---|---|---|
| 1410000110 | 1410000110 | |
| 1410000119 | 1410000119 | |
| 1410993442 | 1410993442 | |
| 1410993445 | 1410993445 |
Lamps
Lamp 1: LED Module 300W , optic 60°, 5700°K, cable with plug
| Type | 1410911422 |
| Quantity | 2 |
| Lamp replaceable | Tauschbar durch Fachpersonal (LED) / Replaceable (LED only) by a professional |
| Ballast replaceable | Austauschbar durch Fachpersonal / Replaceable by a professional |
Lamp 2: LED Module 300W , optic 60°, 4000°K, cable with plug
| Type | 1410911423 |
| Quantity | 2 |
| Lamp replaceable | Tauschbar durch Fachpersonal (LED) / Replaceable (LED only) by a professional |
| Ballast replaceable | Austauschbar durch Fachpersonal / Replaceable by a professional |
