Product Highlights
- Mobile LED information display with V-MAG technology
- Display of information, images, graphics and symbols
- Ideal for LED tickers and directional signs
- Fast and flexible visual communication of information
- Various formats and sizes available
- Outdoor version: IP65
- Indoor version: IP43
- Versatile use in tents, booths and halls

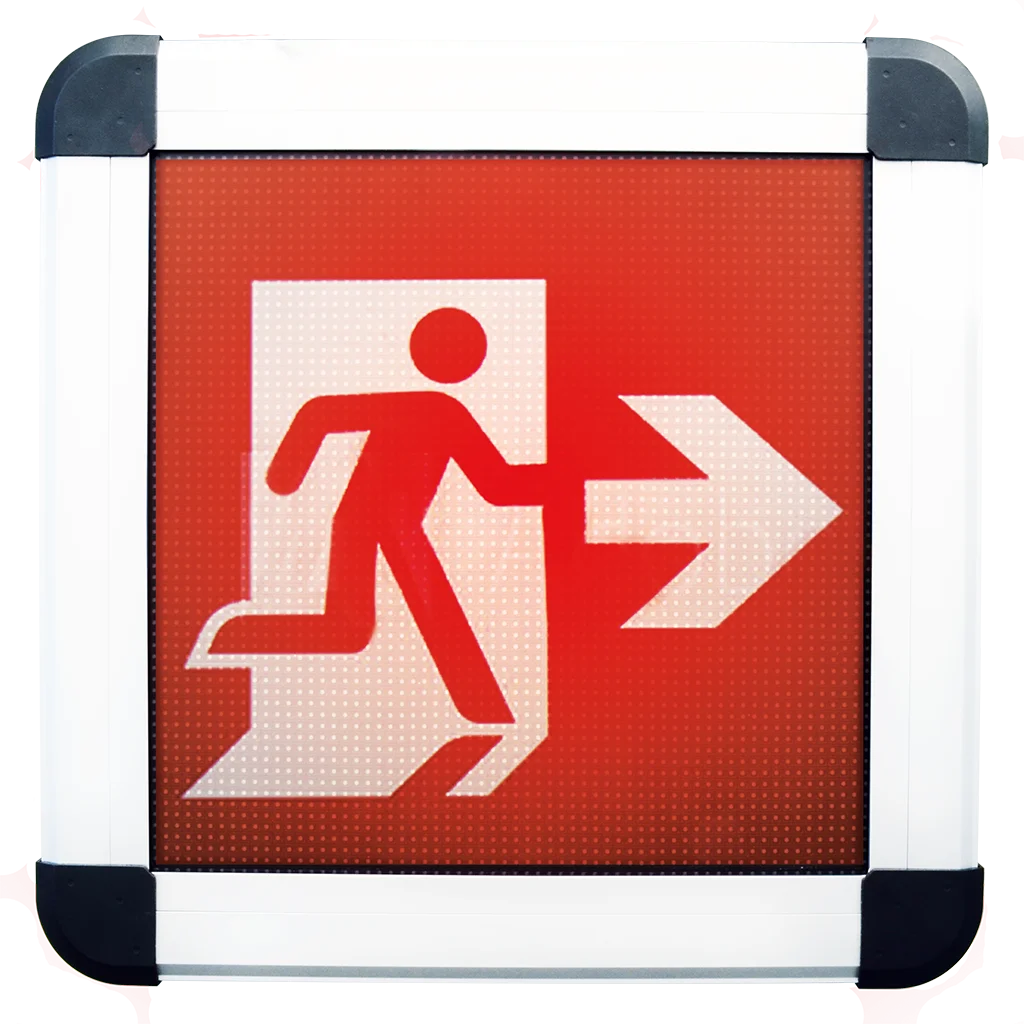

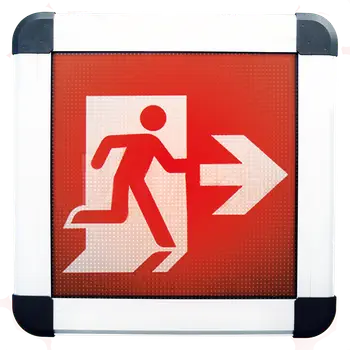

- Ideal for signage and exit marking
V-MAG System P2 Indoor Flat flex 62.5Q
Displaying information flexibly and clearly from a distance
The ALDEBARAN® V-MAG FLAT 3030 is a versatile LED display for the rapid and highly visible presentation of information, images, symbols and signs. Thanks to the tried-and-tested V-MAG technology, content can be displayed with ease and adapted to different information and way finding requirements as the situation demands.
Whether as a scrolling LED display, a graphic information display or a directional sign the ALDEBARAN® V-MAG FLAT 3030 offers numerous options for rapid visual communication. It is ideally suited for use in tents, booths and halls, as well as for signposting routes and exits.
Two system variants are available to suit different operating conditions: an outdoor version with IP65 protection and an indoor version with IP43 protection. A range of available sizes also allows for customization to suit the specific location.
The combination of flexible information display, a range of formats and versatile applications makes the ALDEBARAN® V-MAG FLAT 3030 a practical solution for mobile and temporary information and way finding systems.
1450600007Technical Specifications
| Attribute | Value | Unit |
|---|---|---|
| Brand | ALDEBARAN® | |
| Series | V-MAG | |
| Model | FLAT 3030 | |
| IP Class | IP44 | |
| Temperature (min) | -25 | °C |
| Temperature (max) | +65 | °C |
| Dimensions | 256 x 256 | mm |
| Pixel Pitch | 2 | mm |
| Module Resolution | 128 x 64 | |
| Module Size | 256 x 128 | mm |
| Cabinet Resolution | 128 x 128 | |
| Cabinet Size | 256 x 256 | mm |
| Attribute | Value | Unit |
|---|---|---|
| Input Voltage | 110 - 230 | V |
| Mains Frequency | 50 | Hz |
| Type of Current | AC | |
| Power Consumption | 14 | W |
| Protection Class | I |
